Graphtec CE7000 Series Cutting Plotter (Finishing Solutions)
Click HERE for CE7000-40 quotation
Click HERE for CE7000-60 quotation
Click HERE for CE7000-130 quotation
Click HERE for CE7000-160 quotation
Download Catalogue in HERE
Model:
CE7000 Series
- CE7000-40
- CE7000-60
- CE7000-130
- CE7000-160

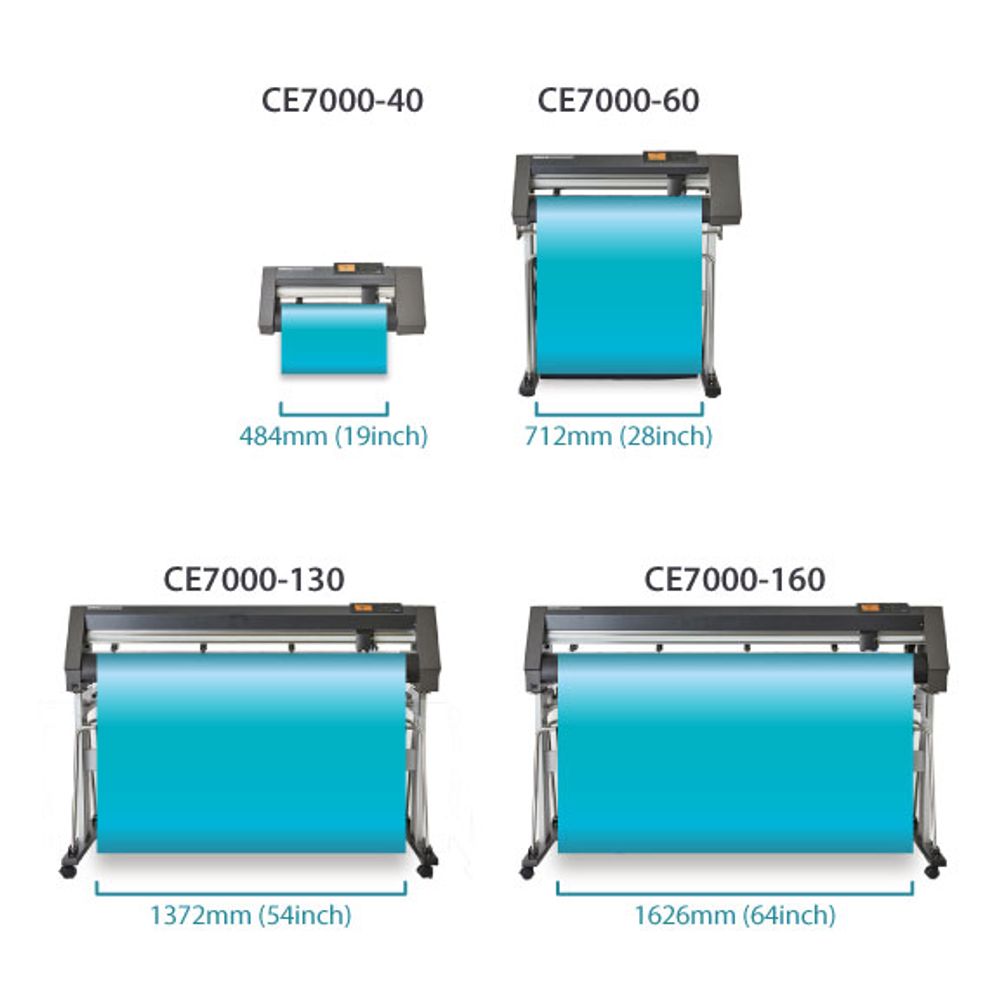

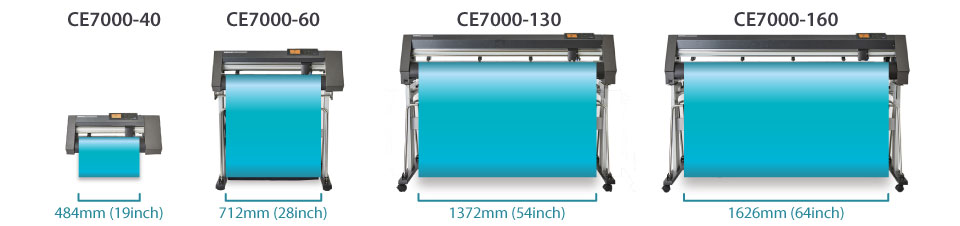

Size Lineup
Four sizes to match all requirements.
Features
Enhanced performance
Max. cutting force 4.41N (450gf) and Max. cutting speed 1000mm/s
With maximum cutting force 4.41N (450gf) and maximum cutting speed 1000 mm/s (*1), it enable to cut various media with high productivity.(*1) CE7000-130 / CE7000-160
Cutting performance that guaranties accurate 5m length cutting. (*2)

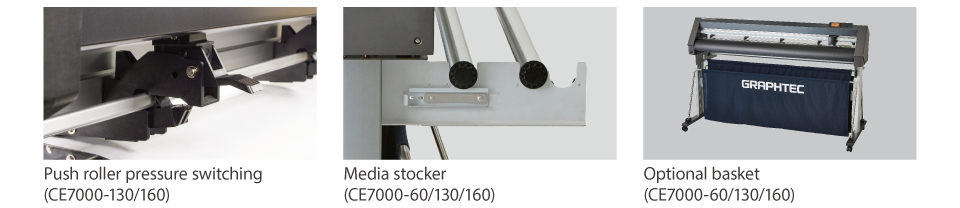

The media stocker helps stabilize the feeding of media. By adjusting the pressure of the middle push roller to the media in three levels, it prevent media floating.
In addition, by using an optional special basket, stability in long cuts can be achieved.
(*2) In case that using optional baskets of CE7000-60/130/160 and cutting media and conditions specified by Graphtec.

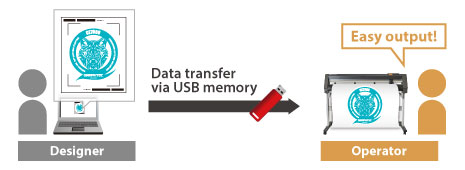

Data output via USB flash memory without PC
When cutting data designed with Cutting Master 4 or Graphtec Pro Studio / Plus are saved to USB flash memory, it can be output directly to the cutting plotter by plugging in. This simplified work-flow enables users to operate without a computer.
* The USB memory format only supports FAT32. Please note that NTFS and exFAT are not supported.

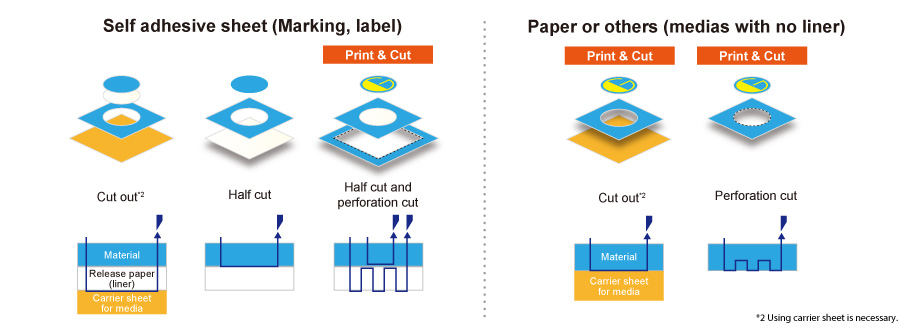

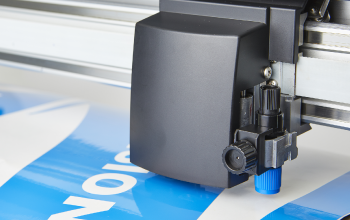

Perforation cutting ability

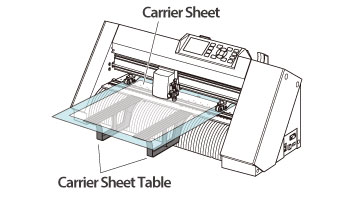

Carrier Sheet Table
It is an optional item that can be attached to the front and back of the cutting plotter to support a carrier sheet.* Available with CE7000-40 / -60.* In case that using carrier sheet “CR09300-A3”, Please use together with carrier sheet table “OPH-A45”.

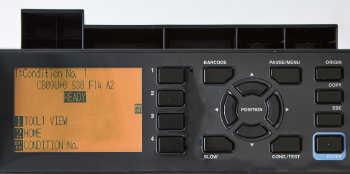

User-friendly control panel
3.7 inch LCD display andeasy-to-use control panel supports 10 languages.

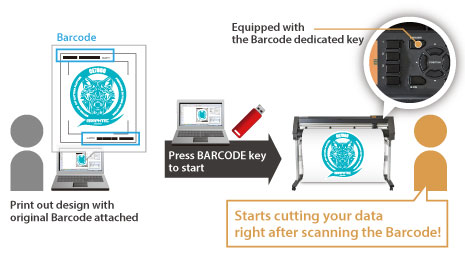

Data Link Function (Barcode Data Management/Continuous Cutting)
By reading the Graphtec original Barcode, CE7000 automatically detects its linked data from PC or USB flash memory. This function is available regardless of which printer or RIP software is used.
* The USB flash memory format only supports FAT32. Please note that NTFS and exFAT are not supported.

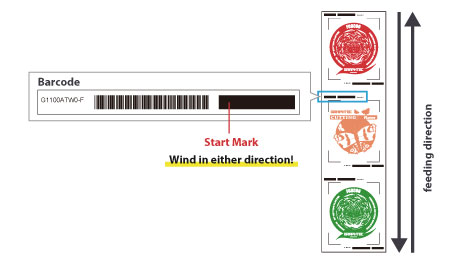

Continuous Cut (Data Link function)
Barcode data management allows cutting different data sequentially by detecting the “Start Mark” of the new Barcode. Sequential Print & Cut process with roll-media is now available.

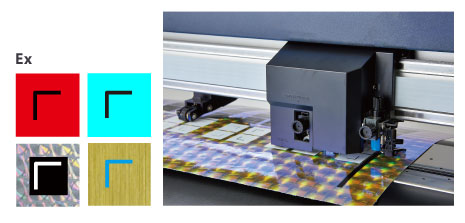

Supports colored marks / specialty media
A wide variety of media types including holographic paper and reflective sheets are now compatible due to improvements of the ARMS sensor algorithm.
* Sensor may not be able to read certain combinations of specialty media and colored marks.
* This photo is an image of FC9000.

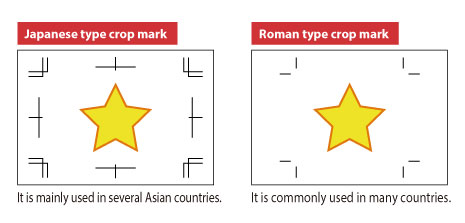

Supports Adobe Illustrator “Crop Marks”
Using the plug-in software Cutting Master 4, Adobe Illustrator crop marks will be availble.

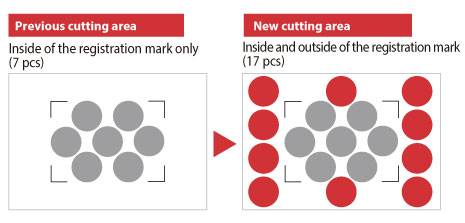

Expanded Cutting Area
The expanded cutting area to include objects outside of the area enclosed by registration marks. Production efficiency is enhanced by reducing media waste.
